Description
OVERVIEW
When running a high rpm and high horsepower racing engine an external crank trigger is a must to avoid issues with a factory internal trigger wheel.

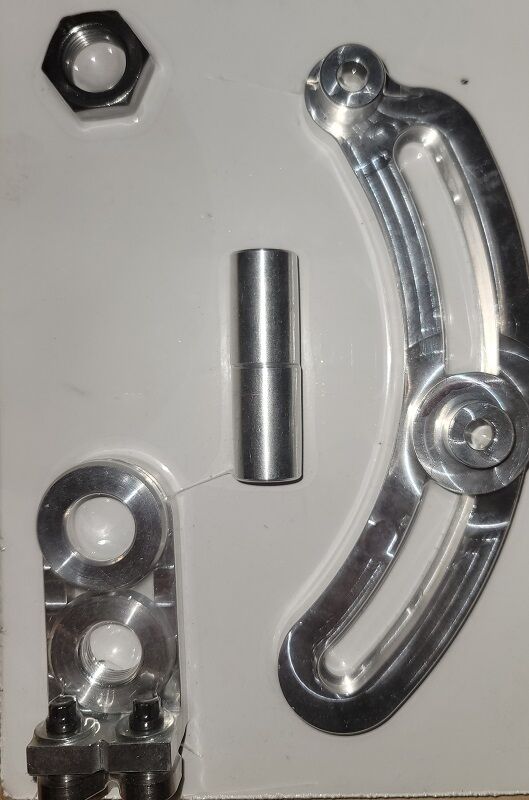

This is the passenger side mount version of our bracket.
The bracket is machined to accept crank sensors with 3/4″-16 thread pitch.
The bracket will accommodate standard ATI 7″ GM Chevy LS Super Dampers with ATI crank trigger shells or bolt on 7″ crank trigger wheels. Maximum diameter of external bolt on wheels or shells is 7 – 1/2″
TECH RESOURCES
– This kit included two standoffs which position the bracket a fixed distance from the block. We found this distance to accommodate most applications. Material can be machined from the standoffs if your application requires the bracket to be mounted closer to the engine block.
– A 3/4″ – 16 thread crank sensor must be used.
Part # LSCTB-PASS
