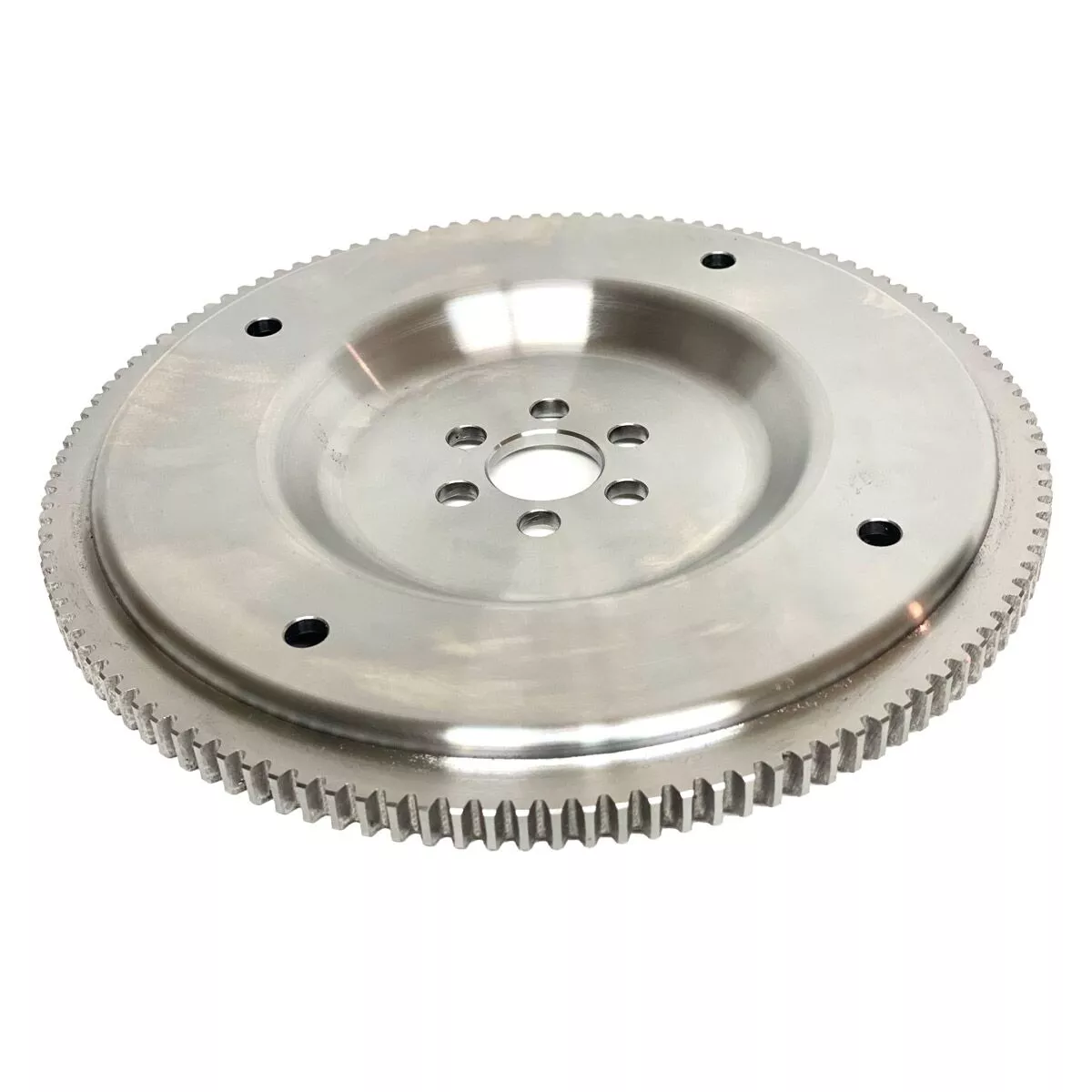

Nissan RB30 Megaflex Flexplate 047-0227

Original price was: $968.00.Current price is: $775.00.

One-piece Boninfante flexplate for Nissan RB30 engines, with an integral 130-tooth ring gear and lightening pockets. Part number 047-0227.

7 in stock

SKU: 047-0227 Categories: , ,

-

Description

The Nissan RB30 Megaflex flexplate, part number 047-0227, is a Boninfante flexplate built for RB30 engines that make serious power. It is machined as a single piece with the ring gear built in, so there is no separate gear to loosen or shift under load. Lightening pockets cut into the plate reduce weight without giving up strength.

Specifications

  • Part number: 047-0227
  • Application: Nissan RB30
  • One-piece construction with integral 130-tooth ring gear
  • Lightening pockets
  • Matte black finish, laser marked
  • Machined to .002 TIR runout
  • Tested to 20,000 RPM, above the SFI 29.2 safety standard
  • Megaflex rating: suggested for up to 5,500 hp

How it is made

Boninfante starts with aerospace grade alloy steel from U.S. mills. The plate goes through a proprietary three-stage heat treatment, is hard machined to tight tolerances, and then gets Boninfante’s stress proofing and finishing process before the black finish is applied.

Megaflex or Superflex?

Boninfante makes this plate in two strengths. The Megaflex shown here is the heavier-duty version, suggested for up to 5,500 hp. The Superflex is suggested for up to 3,500 hp. Both are made to the same quality and safety standards.

Fitment

Boninfante offers several torque converter bolt patterns, and the converter you use may differ from the one in the photo. Contact us with your engine, transmission and converter, and we will confirm this is the right flexplate before you order.

Additional information

Weight 10 lbs
Dimensions 15 × 16 × 4 in
