Product

EV1-torque-coverter

EV1 Torque Converter

$2,422.00

Description

APPLICATION APPROX. STALL RATED HP
EV1 Evolution Series Spragless 30-Spline CUSTOM 1200+
EV1 Evolution Series Mechanical Diode 30-Spline CUSTOM 1200+
EV1 Evolution Series Spragless 27-Spline CUSTOM 1200+
EV1 Evolution Series Mechanical Diode 27-Spline CUSTOM 1200+
EV1 Evolution Series Spragless 29-Spline CUSTOM 1200+
EV1 Evolution Series Mechanical Diode 29-Spline CUSTOM 1200+

FEATURES INCLUDE:

  • LIGHTWEIGHT 7075 T6 BILLET ALUMINUM BOLT-TOGETHER DRIVE COVER
    • FULLY CAD/CAM DESIGNED AND CNC-MACHINED
    • INTEGRAL STRENGTHENING STRUTS PROVIDE EXTRA SUPPORT IN CRITICAL AREAS TO PREVENT FLEXING OR BALLOONING
    • ROTATING MASS IS REDUCED BY REMOVING MATERIAL FROM NON-CRITICAL AREAS.
    • FULLY RADIUSED TO PREVENT STRESS RISERS
    • 12 MOUNTING LOCATIONS TO ACCOMMODATE BOTH LARGE AND SMALL BOLT PATTERN FLEX PLATES
    • HARD ANODIZED FOR ADDED STRENGTH AND DURABILITY.

CUSTOM DESIGNED HARDWARE:

  • 24 CUSTOM AEROSPACE (4340 ROLLED THREAD) FASTENING STUDS
    • “SAFE-D” STUD TECHNOLOGY WHICH ARE INDEXED INTO THE ALUMINUM FRONT COVER TO PROVIDE A SAFE AND SECURE WAY TO KEEP BOTH HALVES OF THE CONVERTER IN CONSTANT COMPRESSION
    • STEEL KEENSERTS PROVIDE THE SAFEST AND STRONGEST METHOD TO ATTACH THE FLEX PLATE TO THE CONVERTER

CUSTOM BILLET STATOR:

  • CUSTOM BILLET STATORS HAVE BEEN CAD/CAM-DESIGNED AND CNC-MACHINED FROM SOLID BILLET STEEL OR BILLET ALUMINUM
    • 10 STRUT MECHANICAL DIODE OR SPRAGLESS CONFIGURATION
    • MANY OPTIONS ARE AVAILABLE FOR TUNABILITY IN SPECIFIC COMBINATIONS AND CONDITIONS
    • FUTURE CUSTOM STATOR DESIGNS WILL ALLOW INFINITE ADJUSTABILITY TO FINE TUNE POWER APPLICATION
    • ALLEN HEAD JACKING BOLTS PROVIDED TO EASE DISASSEMBLY

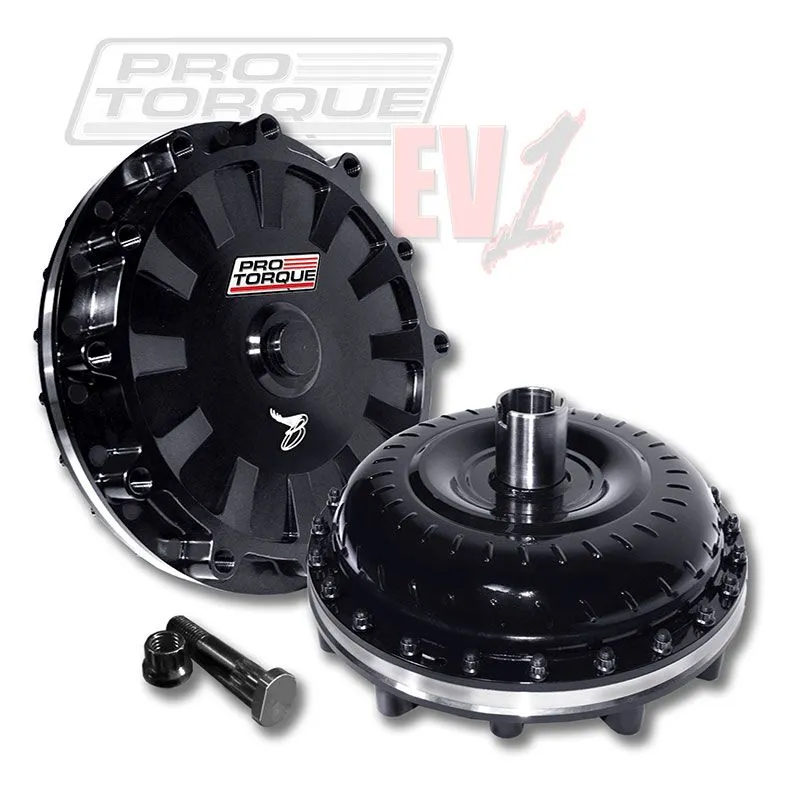

Actual converter may vary, image for illustration purposes only.

IMPORTANT INFORMATION:
Repairs and freshen up prices depend on condition of core.
Standard freshen up consist of replace bearings, bushings and drive hubs and will vary in price from $197- $397.
Stall adjustment will depend on parts needed and/or time needed to modify.
Please add NP for all non-lock up.
All stall speeds are approximate, please call for more info.
We are a full custom shop we will work on everything and anything please call for custom work not yet listed!

Only available with Mechanical Diode
Product total
Options total
Grand total
SKU: PT-EV1 Category:

-

Description

Rated for 1200+ horsepower
Custom stall speed

From Revolution comes Evolution! ProTorque’s EV1 series converters are designed to be better, stronger, safer, and completely seviceable and adjustable for power applications and conditions. Featuring a lightweight 7075 T6 billet aluminum bolt-together drive cover, the fully CAD/CAM designed and CNC-machined converters also incorporate strengthening struts to provide extra support to critical areas to prevent flexing or ballooning. Additionally, rotating mass is reduced as material has been removed from non-critical areas while the custom billet stators have been CNC-machined from solid billet steel or billet aluminum.

Actual converter may vary, image for illustration purposes only.

Additional information

Weight 3 lbs
Dimensions 16 × 16 × 5 in
